Art 50220

Adaptable to

Pin for implement hitch
Diameter 19/25/19x210 mm

perno doppio per attacco attrezzi

Disponibile nelle categorie : DOUBLE PIN FOR LOWER LINK ARMS

Pin for implement hitch

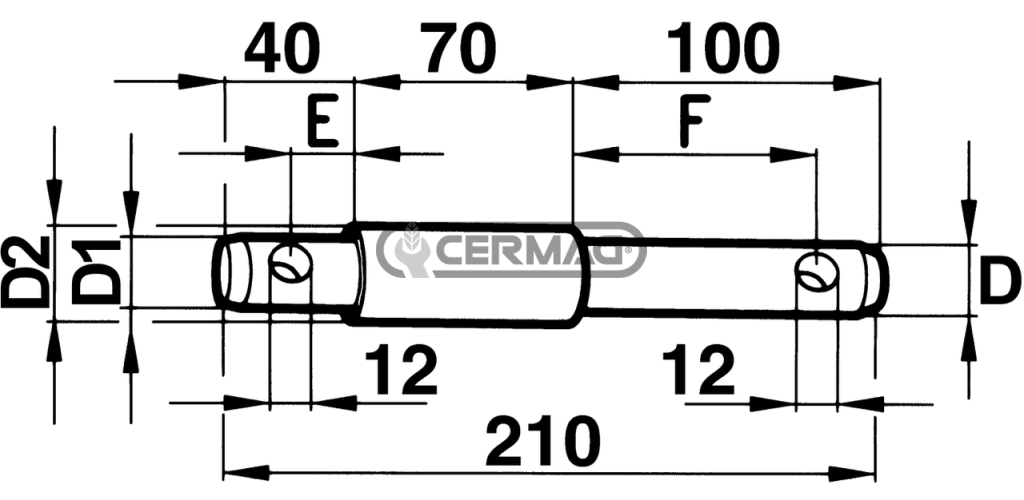

Data

Total length 210 mm

Outer diameter of the central section – D2 25 mm

Hole diameter - d 12 mm

External diameter - D1 19 mm

External diameter - D 19 mm

Hole distance from the stop - F 80 mm

Hole distance from the stop - E 20 mm

net weight 0.75 kg
