Art 50789

Adaptable to

Hydraulic side link

braccio lat.idr. 720x80x40
Disponibile nelle categorie : HYDRAULIC SIDE LINKS
Hydraulic side link
Hydraulic side link

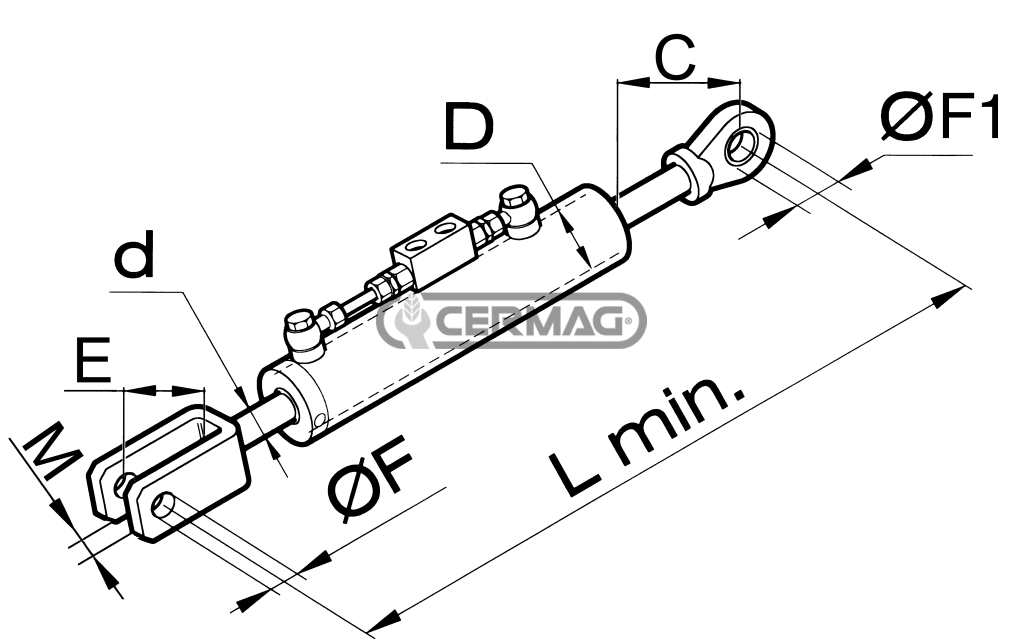

Data

Minimum length 720 mm
Bore - D 80 mm
Stem diameter - d 40 mm
Stem terminal - F Yoke with buttonhole Ø 26x96 mm
Cylinder terminal - F1 Inclined spherical joint Ø 25.4 mm
Rod stroke 220 mm
Internal fork width - M 30 mm
Distance between cylinder bottom and hole center - C 205 mm
Distance between inside of fork and center of hole - E 110 mm
net weight 17.2 kg
Adaptable to
