Art 84408

Adaptable to

Double-acting overcenter valve for descent control
Couplings 1/4" Gas

valvola over center D.E 1/4"

Disponibile nelle categorie : HYDRAULIC VALVES

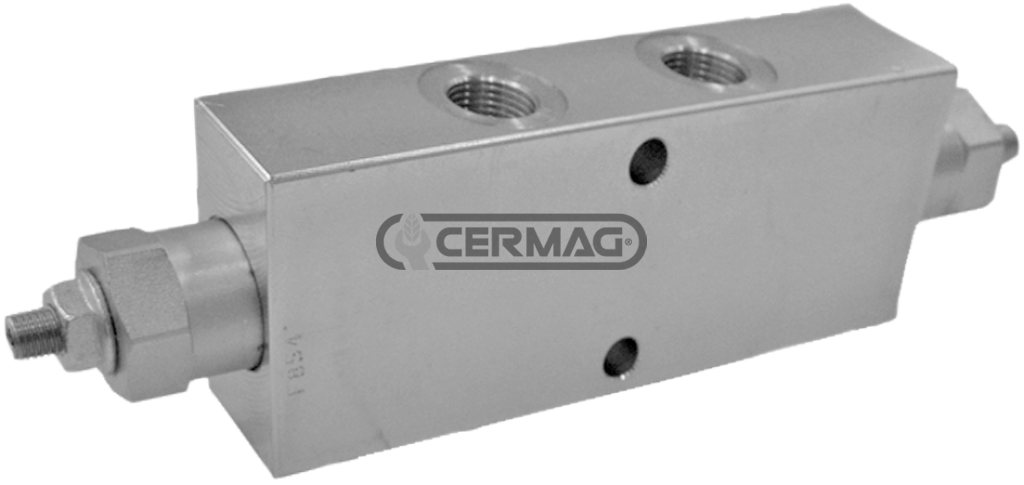

Double-acting overcenter valve for descent control

Data

Series A-VBSO-DE-78

Maximum pressure 410 Bar

Maximum flow rate at inlet 60 l/min

piloting ratio 4.2:1

Couplings 1/4" Gas

net weight 1.2 kg
