Art 26522

Adaptable to

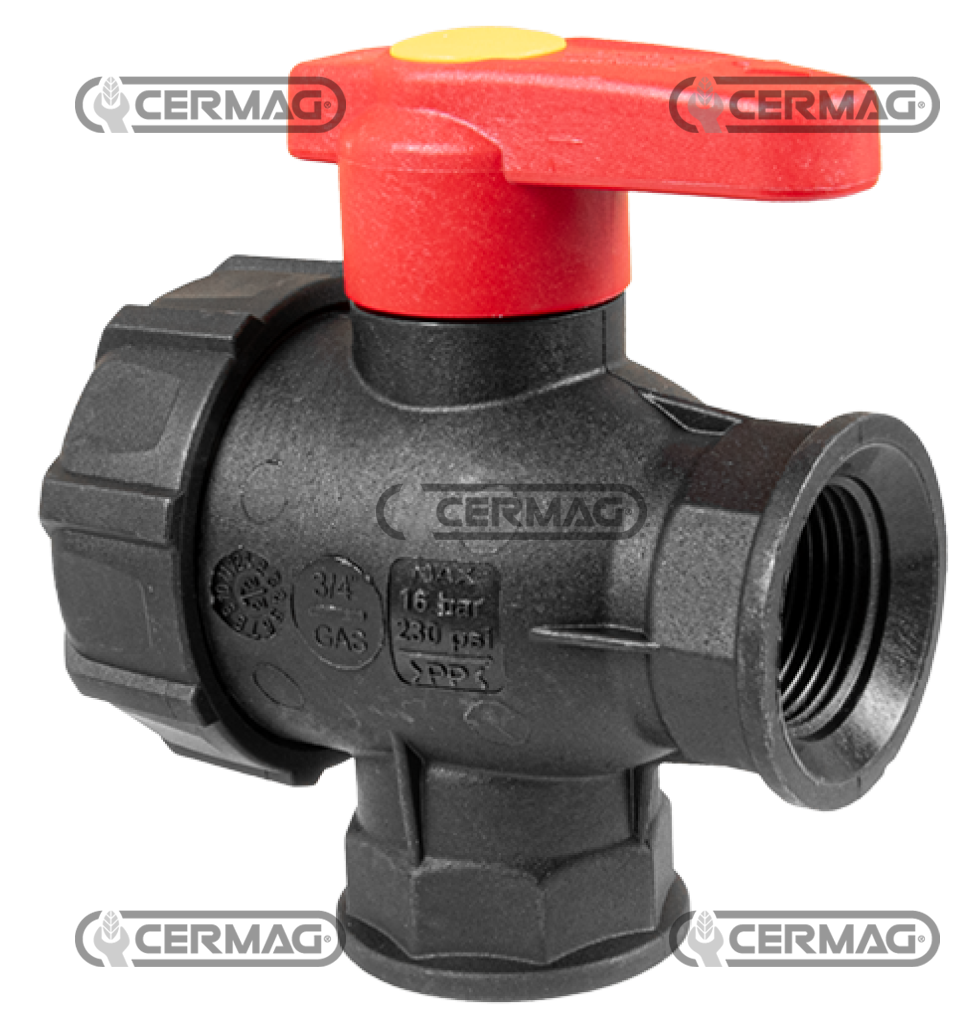

3-way ball valve with continuous flow
Union Internal thread 3/4" Gas

valv.a sfera 3vie G3/4" flusso c.

Disponibile nelle categorie : 3-WAY BALL VALVES

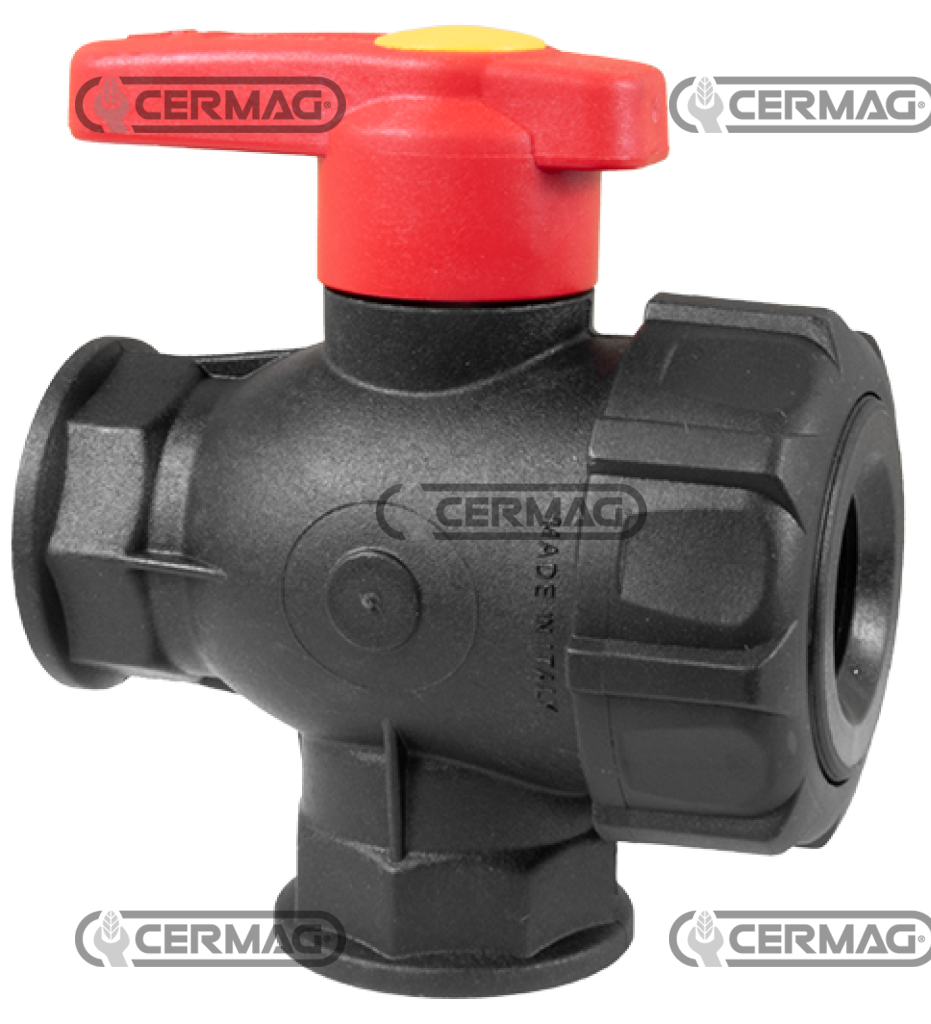

3-way ball valve with continuous flow

Data

Total length - T 86.5 mm

Internal diameter - DN 19 mm

Maximum pressure 16 Bar

Threading Internal - 3/4" Gas

Height - A 56 mm

Distance - B 42 mm

Distance - C 84 mm

Width - D 42 mm

Distance - E 29 mm

Distance - E1

Height - H 99.5 mm

Thread length - L 21 mm

Thread length - P 23 mm

net weight 0.145 kg
