Art 26526

Adaptable to

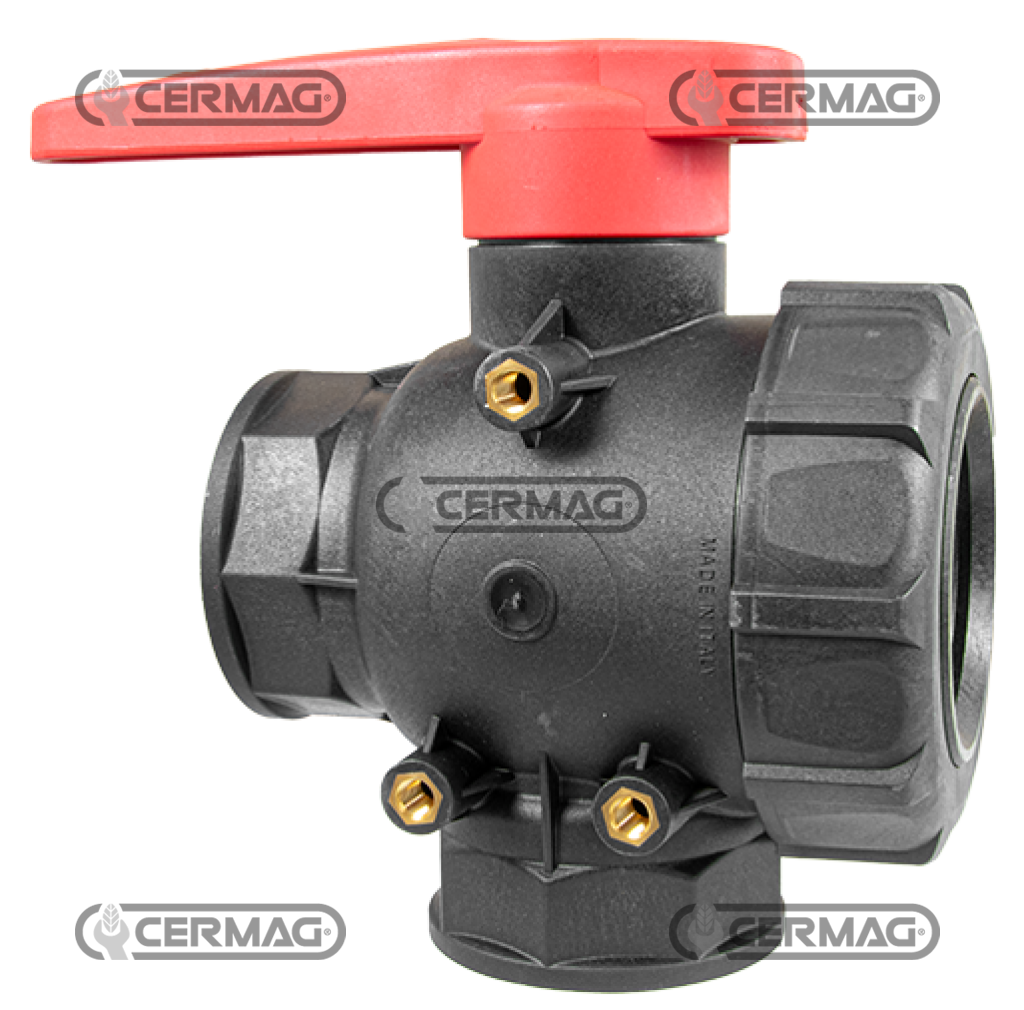

3-way ball valve with continuous flow
Union Internal thread 2" Gas

valv.a sfera 3vie G2" flusso c.
Disponibile nelle categorie : 3-WAY BALL VALVES
3-way ball valve with continuous flow
3-way ball valve with continuous flow

Data

Total length - T 148.5 mm
Internal diameter - DN 49 mm
Maximum pressure 10 Bar
Threading Internal - 2" Gas
Height - A 106 mm
Distance - B 73 mm
Distance - C 260 mm
Width - D 130 mm
Distance - E 55 mm
Distance - E1 50 mm
Height - H 186 mm
Thread length - L 35 mm
Thread length - P 40 mm
Center distance of the holes - X 43 mm
Center distance of the holes - Y 78 mm
Threading - Z M8
net weight 0.811 kg
