Art 925421

Spare parts
Adaptable to

Vane flowmeter WOLF
Pressure 20 Bar
Flow rate 2.5÷50 l/min

flussometro WOLF 2,5/50 lt T.5
Disponibile nelle categorie : FLOWMETERS

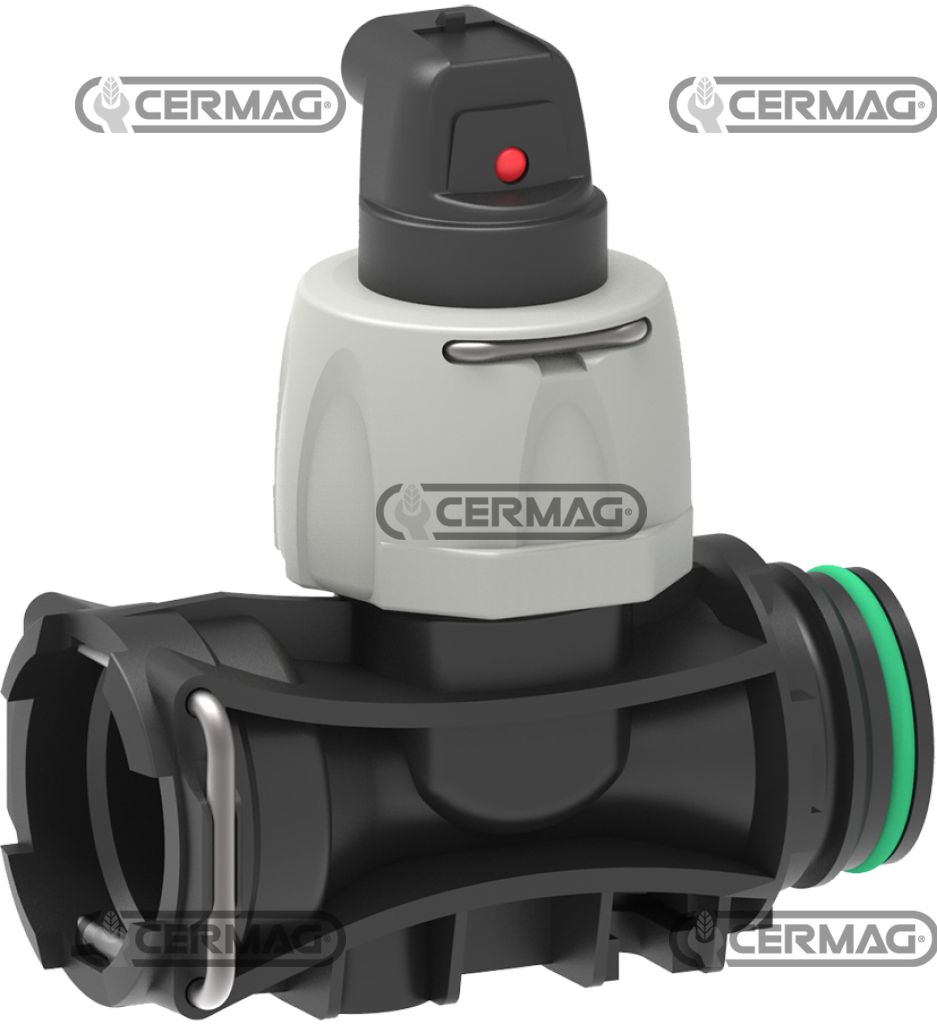

Vane flowmeter WOLF
Vane flowmeter WOLF

Description

  • High precision and excellent price/performance ratio
  • Male/female T5 fork connection for direct linkage to control units
  • LED operation indicator
  • Sapphire pivot for minimal friction during rotation, maximizing sensitivity and precision
  • Paddle group with "TWIST" system for tool-free cleaning and replacement
  • Fully sealed and waterproof electronic sensor
  • Typical error of 1% of full scale
  • Power supply voltage 4/26 Vdc
  • Maximum consumption 25 mA
  • Pulse output 0-12 Vdc with frequency proportional to flow rate
  • Fluid-contacting parts in nylon reinforced with fiberglass Delrin

Data

Connection Fork T5
Maximum pressure 20 Bar
Flow rate 2.5÷50 l/min
Series 462
net weight 0.6 kg

Spare parts

Product Date Purchase
Fork for connecting fittings
27878 Fork for connecting fittings
Coupling T5
Disponibile nelle categorie : SPARE PARTS FOR SPRAYING GROUPS
O-Ring in VITON
27883 O-Ring in VITON
Size 36.1x3.5 mm
Union T5
Disponibile nelle categorie : O-RING AND GASKETS FOR SPRAYING - WEEDING EQUIPMENT
Sensor with swivel WOLF
28051 Sensor with swivel WOLF
Disponibile nelle categorie : SPARE PARTS FOR SPRAYING GROUPS
Spare blade kit for WOLF flowmeters
28052 Spare blade kit for WOLF flowmeters
Disponibile nelle categorie : SPARE PARTS FOR SPRAYING GROUPS
