Art 27228

Accessories
Adaptable to

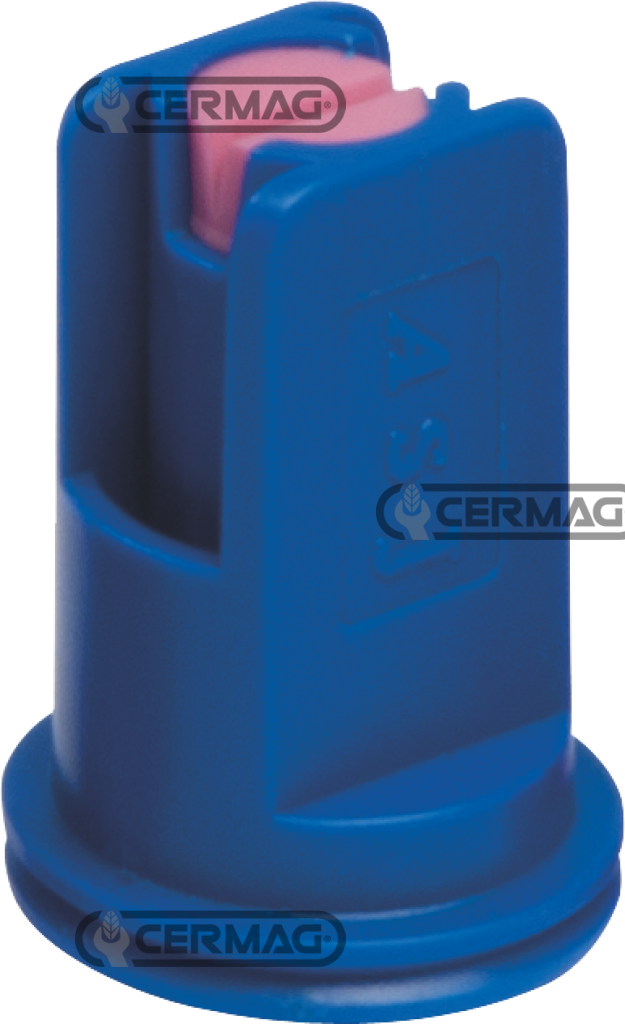

ISO air induction nozzle
Series AFC 110° - 03

ugello AFC antider.ceramic.110° BLU
Disponibile nelle categorie : FAN AND CONE SPRAY NOZZLE
ISO air induction nozzle
ISO air induction nozzle

Description

  • Smooth coverage at any pressure.
  • Their two-piece structure allows easier cleaning.
  • Thanks to their standard size they can directly replace Flat Fan nozzles.
  • Drift reduced up to 90% (at 3 bars) if compared to classic nozzles.
  • Spray very big drops containing air bubbles, which break onto the crop into several smaller drops.
  • Their acetal resin-molded outer body, together with their ceramic insert, ensures an exceptionally long useful life.
  • Suitable for herbicides, fungicides and pesticides.

Caratteristiche Tecniche

The table expresses the quantities of dispersed liquid (in liters per hectare), as a function of speed (in km/hour) and operating pressure.
The results were obtained using clean water and checking the pressure with a pressure gauge placed immediately before the nozzle.

Data

Minimum working pressure 1.5 Bar
Maximum working pressure 8 Bar
Flow rate 0.85 ÷ 1.96 l/min
Spray angle 110 °
Material Delrin + Ceramic
Color ISO Blue
net weight 0.002 kg

Accessories

Product Date Purchase
Nozzle head with bayonet connection and seal
26065 Nozzle head with bayonet connection and seal
Disponibile nelle categorie : HEADS FOR WEEDING NOZZLES
Colour Red
Nozzle type SF - WRC - LDC - CFA - AFC - AOC - API - CVI - CVI TWIN - ATP
net weight 0.01 kg
Nozzle head with bayonet connection and seal
28026 Nozzle head with bayonet connection and seal
Disponibile nelle categorie : HEADS FOR WEEDING NOZZLES
Colour Blue
Nozzle type SF - WRC - LDC - CFA - AFC - AOC - API - CVI - CVI TWIN - ATP
net weight 0.01 kg
Nozzle head with bayonet connection and seal
28027 Nozzle head with bayonet connection and seal
Disponibile nelle categorie : HEADS FOR WEEDING NOZZLES
Colour Green
Nozzle type SF - WRC - LDC - CFA - AFC - AOC - API - CVI - CVI TWIN - ATP
net weight 0.01 kg
Nozzle head with bayonet connection and seal
28028 Nozzle head with bayonet connection and seal
Disponibile nelle categorie : HEADS FOR WEEDING NOZZLES
Colour Yellow
Nozzle type SF - WRC - LDC - CFA - AFC - AOC - API - CVI - CVI TWIN - ATP
net weight 0.01 kg
Nozzle head with bayonet connection and seal
28029 Nozzle head with bayonet connection and seal
Disponibile nelle categorie : HEADS FOR WEEDING NOZZLES
Colour Brown
Nozzle type SF - WRC - LDC - CFA - AFC - AOC - API - CVI - CVI TWIN - ATP
net weight 0.01 kg
