Art 27998

Accessories

Adaptable to

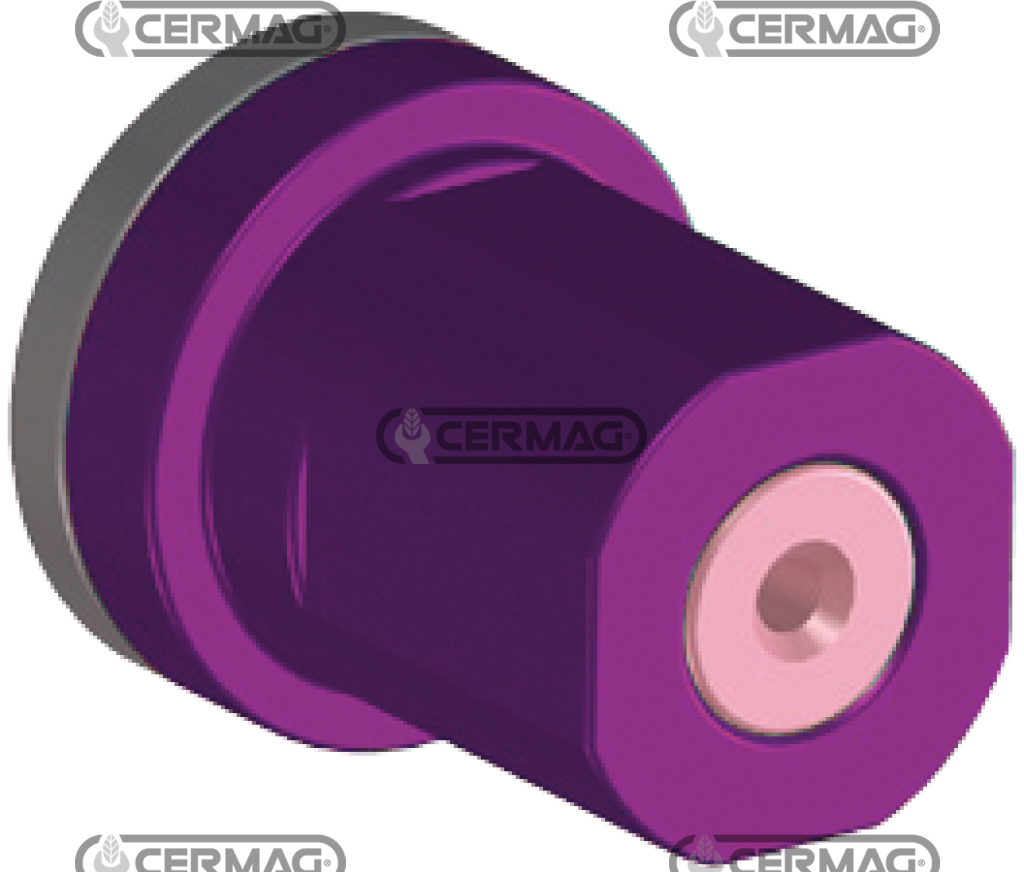

ISO Antidrift hollowcone nozzle
Series TVI 80° - 025

ugello albuz tvi 80Â° 80025 lilla

Disponibile nelle categorie : FAN AND CONE SPRAY NOZZLE

Description

Materials: alumina Al2O3 - high strength plastic materials.
Use: fungicide and insecticide treatments on sprayers for vineyards and orchards.
ISO standards.
Anti-drift air injection hollow cone nozzle.
Large droplets that explode into fine droplets upon contact with crops.
Easy disassembly and cleaning.
High wear resistance.
Compact size.
Recommended pressure 10 bar.

Caratteristiche Tecniche

The table shows the quantities of liquid dispersed as a function of the operating pressure.
The results were obtained using clean water and checking the pressure with a pressure gauge placed immediately before the nozzle.

Data

Minimum working pressure 5 Bar

Maximum working pressure 25 Bar

Flow rate 1.29 ÷ 2.89 l/min

Spray angle 80 °

Material Delrin+Ceramic

Color ISO Violet

net weight 0.029 kg

Accessories

Product	Date	Purchase
26067 Nozzle head with bayonet connection and seal	Disponibile nelle categorie : HEADS FOR WEEDING NOZZLES Colour Red Nozzle type HCI - HCC - HCA - TVI - ATR - ATR CLIPS net weight 0.01 kg
28034 Nozzle head with bayonet connection and seal	Disponibile nelle categorie : HEADS FOR WEEDING NOZZLES Colour Blue Nozzle type HCI - HCC - HCA - TVI - ATR - ATR CLIPS net weight 0.01 kg
28035 Nozzle head with bayonet connection and seal	Disponibile nelle categorie : HEADS FOR WEEDING NOZZLES Colour Green Nozzle type HCI - HCC - HCA - TVI - ATR - ATR CLIPS net weight 0.01 kg
28036 Nozzle head with bayonet connection and seal	Disponibile nelle categorie : HEADS FOR WEEDING NOZZLES Colour Yellow Nozzle type HCI - HCC - HCA - TVI - ATR - ATR CLIPS net weight 0.01 kg
28037 Nozzle head with bayonet connection and seal	Disponibile nelle categorie : HEADS FOR WEEDING NOZZLES Colour Brown Nozzle type HCI - HCC - HCA - TVI - ATR - ATR CLIPS net weight 0.01 kg
