Art 28250

Accessories

Adaptable to

ISO twin fan nozzle
Series ATP 110° - 03

ugello doppio antideriva ATP BLU

Disponibile nelle categorie : FAN AND CONE SPRAY NOZZLE

Description

Provides good spraying range, improving penetration and application of the products thanks to two nozzles at 30°+30°.
Compact design to reduce the risk of damage.
Large double air intake with anti-clogging profile.
Large drops filled with air to ensure improved spraying of the leaf surface.
Can be fully disassembled for easy maintenance.
Can be used with Flat Fan nozzle caps.
Made of molded acetal resin, a polymer ensuring high chemical stability and an excellent useful life.
Suitable for herbicides, fungicides and pesticides.

Caratteristiche Tecniche

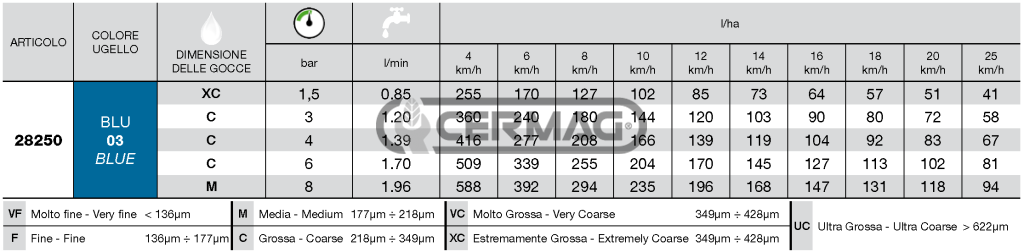

The table expresses the quantities of dispersed liquid (in liters per hectare), as a function of speed (in km/hour) and operating pressure.
The results were obtained using clean water and checking the pressure with a pressure gauge placed immediately before the nozzle.

Data

Minimum working pressure 1.5 Bar

Maximum working pressure 8 Bar

Flow rate 0.85 ÷ 1.96 l/min

Spray angle 110 °

Material Delrin

Color ISO Blue

net weight 0.002 kg
