Art 26028

Spare parts

Adaptable to

PUMPS WITH OVERDRIVE
series X40

pompa autoadescante con moltiplicat

Disponibile nelle categorie : SELF-PRIMING PUMPS WITH OVERDRIVE

Description

SPECIFICATIONS:
• Pump and impeller of bronze
• Shaft of stainless steel AISI 420
• Overdrive R 1:6
• Connection 1” 3/8

H = hydraulic head
Q = liters per minute flow rate

Data

Ø ports 40 mm

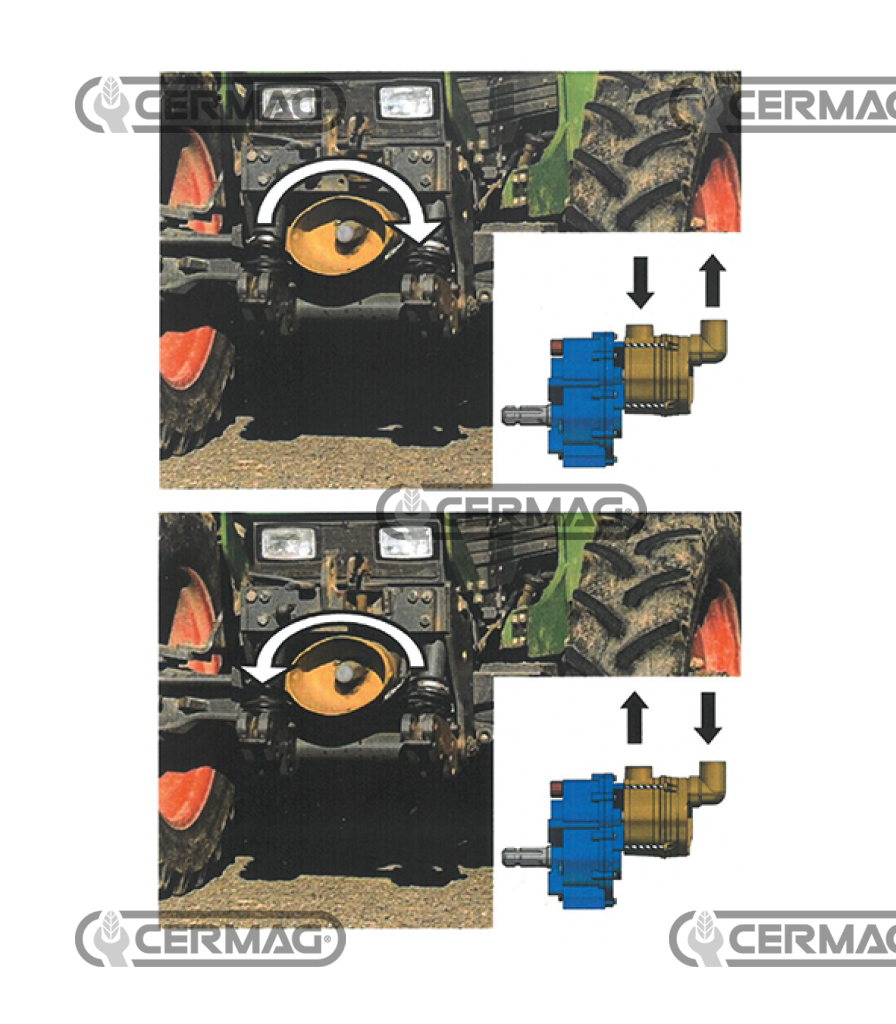

PTO turns 480 giri/min

priming 6 m

series X40

220 rpm - H 1 Q 149 / HP 0,7

220 rpm - H 5 Q 119 / HP 0,8

220 rpm - H 10 Q 78 / HP 0,9

300 rpm - H 1 Q 192 / HP 1,7

300 rpm - H 5 Q 168 / HP 1,8

300 rpm - H 10 Q 139 / HP 2,1

450 rpm - H 1 Q 258 / HP 4,3

450 rpm - H10 Q 234 / HP 4,8

450 rpm - H 20 Q 203 / HP 5,4

450 rpm - H 30 Q 167 / HP 5,8

net weight 12.2 kg

Spare parts

Product	Date	Purchase
27109 Retaining ring	Disponibile nelle categorie : SPARE PARTS FOR PUMPS 26028-26029-26760-26761-26762 diameter 40 mm reference 1 net weight 9.6 kg
27112 Curved union	Disponibile nelle categorie : SPARE PARTS FOR PUMPS 26028-26029-26760-26761-26762 diameter 40 mm reference 2 net weight 9.6 kg
27114 Pump casing	Disponibile nelle categorie : SPARE PARTS FOR PUMPS 26028-26029-26760-26761-26762 diameter 40 mm reference 3 net weight 0.974 kg
27117 Rear internal part	Disponibile nelle categorie : SPARE PARTS FOR PUMPS 26028-26029-26760-26761-26762 diameter 40 mm reference 4 net weight 0.453 kg
27120 Impeller	Disponibile nelle categorie : SPARE PARTS FOR PUMPS 26028-26029-26760-26761-26762 diameter 40 mm reference 5 net weight 0.629 kg
27123 Front internal part	Disponibile nelle categorie : SPARE PARTS FOR PUMPS 26028-26029-26760-26761-26762 diameter 40 mm reference 6 net weight 0.404 kg
27125 Pump cover	Disponibile nelle categorie : SPARE PARTS FOR PUMPS 26028-26029-26760-26761-26762 diameter 40 mm reference 7 net weight 0.834 kg
27128 Straight union	Disponibile nelle categorie : SPARE PARTS FOR PUMPS 26028-26029-26760-26761-26762 diameter 40 mm reference 8 net weight 0.201 kg
27130 Set of gaskets	Disponibile nelle categorie : SPARE PARTS FOR PUMPS 26028-26029-26760-26761-26762 diameter 40 mm reference 9 net weight 0.02 kg
